TOFU TKL

キーボード概要

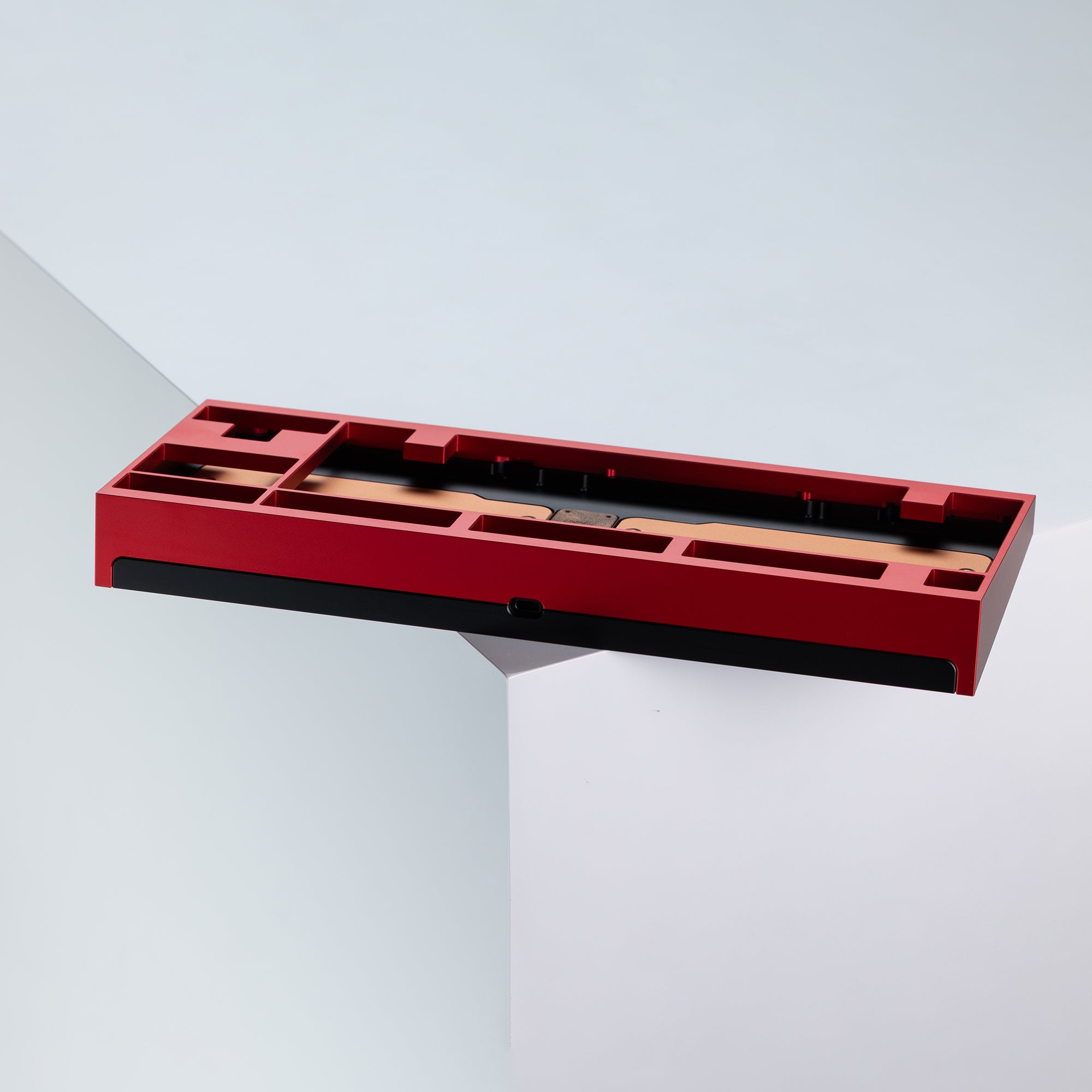

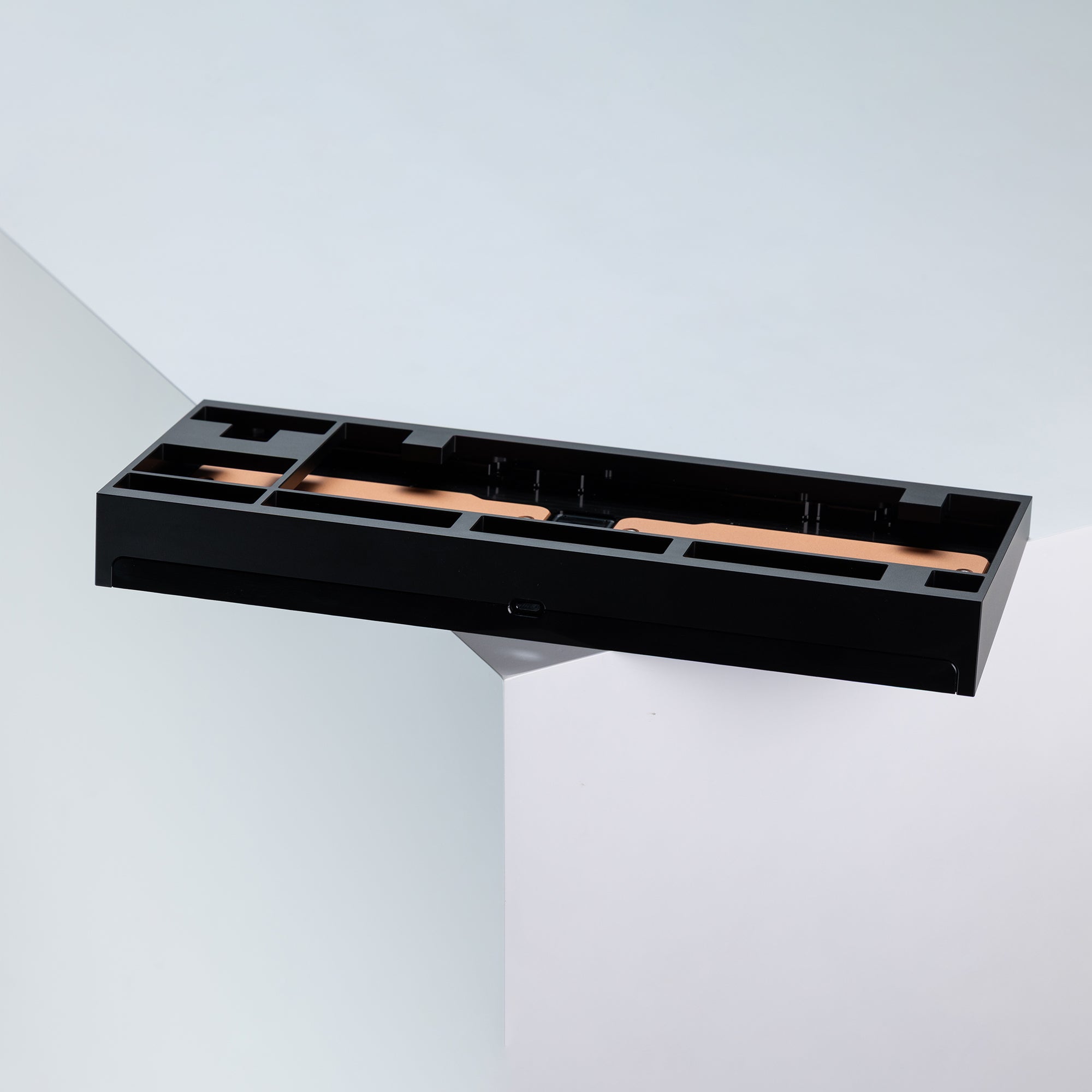

TOFU TKL R2 pre-order: Q2, 2026 The TOFU series draws its design inspiration from the purity and versatility of its namesake. Its philosophy is one of minimalism, featuring clean, architectural lines reminiscent of a simple block of tofu. It is a design that strips away the superfluous, returning to the fundamental essence of a typing instrument. As the latest evolution of this legacy, the Tofu TKL embraces this spirit of adaptability. Mirroring the culinary diversity of tofu, the TKL offers a choice of distinct case materials—Aluminum, Stainless Steel, and Copper. This allows each enthusiast to craft a keyboard that perfectly matches their personal preference for weight, sound, and feel, creating an experience that is uniquely their own. Case Design Craftsmanship & FinishExpertly crafted, the Tofu TKL case comes in two premium finishes. Choose the silky-smooth feel of sandblasted anodized aluminum or the fine, matte texture of our rich E-coating. Both perfectly highlight the case's clean, sculpted lines. Structural IntegrityInternally, the Tofu TKL carries forward the minimalist design heritage of the TOFU family while introducing a versatile dual-mounting system. This allows users to choose between a classic TOP Mount for a firm, responsive feel, or a PCB Gasket Mount for a softer, more flexible typing experience, catering to diverse preferences. Visual LanguageVisually, the Tofu TKL introduces a bold design language. The bottom case features an exposed rear accent, splitting the USB port face into two distinct sections. This innovative construction enables striking two-tone color combinations, both immediately captivating and enduringly timeless. Integrated Force Break SystemThe design includes custom-molded Force Break silicone pads. These pads create a buffer between case components, effectively dampening case vibration and eliminating unwanted metallic "ping," ensuring a cleaner sound. Specs Case material: Aluminum (anodized/e-coating) Mounting style: Top Mount/PCB Silicone Gasket PCB: 1.6mm, 4 options, solder/wired hotswap/Dual-mode hotswap/HE Plate: Alu/Carbon fiber/PC Plate Typing angle: 9 degree Cover plate material options: Stainless Steel / Brass Weight: Up to 4.9kg after built Designer: Wei Plate file What's included Top and bottom case x1 Optional weight bar x2 Silicone gasket x1 set Rubber feet x1 set PCB x1 Daughterboard x1 Optional foam kit x1 set Battery compartment foam kit x1 set Optional plate x1 Carrying case x1 Additional Accessories Tofu TKL Accessories Tofu TKL | Custom Color Edition Top Case Tofu TKL | Custom Color Edition Bottom Case Vendor KR: Geonworks USA: Divinikey SGB: Ktechs DE: Keygem MonacoKeys FR: KEYCAPSULE ES: EloquentClicks SE: Maxgaming TH: Aiglatson Studio VN: The Keebs Of Leser MOKB BYS Soi Gear ID: Keebsmark UK: Prototypist Other information Tofu TKL: Prototype Revisions More information about the wired HE PCB QC Standard Upon receipt, the casing is considered acceptable if all six external surfaces (top, bottom, left, right, front, and back) are free from machining marks, stains, dents, and pinholes, and do not have any black dots larger than 1mm or scratches longer than 1mm. The copper weight is considered acceptable if it does not have any black dots, pinholes, or blemishes larger than 1mm, and no scratches longer than 2mm. Flaws and manufacturing artifacts that do not affect the overall external appearance are considered reasonable. This includes, but is not limited to: minor blemishes around screw holes, uneven internal coating, hook marks (from anodizing/painting) where the base color is exposed, and water marks, tool marks, or scratches on internal surfaces. Purchasing this product means you accept these terms. Due to the significant weight difference between the top and bottom case parts, there may be slight color variations even when the same color is chosen for both. Standards for RAW FinishThe RAW version is unanodized and uncoated. It preserves the original look of the machined metal, including natural tool marks. Acceptable Quality Standards (Not covered by warranty):1. Minor scratches, tool paths, and small speck-like imperfections.2. Variations in surface reflection or slight dark spots on the raw metal. (RAW products are not sold as "flawless." By purchasing, you acknowledge and accept the inherent characteristics of this manufacturing process.) Statement Regarding TOFU TKL Stonewashed Case Please note that due to the nature of the stonewashing process, where metal interacts with stone, some abrasion on sharp corners may occur. This is a normal result of the manufacturing process. We strive to maintain strict quality control; however, it is impossible to completely prevent minor wear on sharp edges. We recommend handling the case with care and avoiding hard impacts to prolong its service life. We appreciate your support and understanding. Mounting Style PCB Gasket mount Engineered for SoftnessFollowing a similar support distribution as the TOP Mount, the PCB Gasket is designed to provide a maximally soft, bouncy, and flexible typing experience. Plateless Build PotentialCombine this mount with the solderable PCB to assemble your board without a plate. This "plateless" configuration is the ultimate choice for achieving maximum flex and a unique, deep sound profile. Top mount Optimized TOP Mount StructureTo minimize resonance and hollowness, the mounting points for the TOP structure are strategically placed to avoid the spacebar area. This results in a more uniform and satisfying sound signature. Plate-Mount Silicone DampenersSilicone dampeners provide complete physical decoupling of the positioning plate from the upper housing. This design mitigates resonance conduction at its origin, significantly reducing structural noise Exploded View How to Customize Your TOFU TKL Step 1: Launch the Configurator Go to our live configurator at https://kbd.tools/. Once there, select "TOFU TKL " from the "Select Keyboard Model" dropdown menu. 8Step 2: Design Your Build Explore all the configuration options and customize your keyboard to your personal preference. You can freely choose your: Top Case & Bottom Case Weight (Brass, Aluminum, stainless steel, Copper) PCB (Hotswap, Solder and HE) Plate (Carbon Fiber, Polycarbonate, Aluminum,FR4) Foam Kit Wrist Rest As you make your selections, the configurator will provide a live preview of your color combination, along with the updated total weight and price. Step 3: Finalize Your Order Once you have finalized your design in the configurator, return to this product page. Select the exact same options from the dropdown menus here, then add the item to your cart and complete your order. How to Customize Your TOFU TKL Step 1: Launch the Configurator Go to our live configurator at https://kbd.tools/. Once there, select "TOFU TKL " from the "Select Keyboard Model" dropdown menu. 8Step 2: Design Your Build Explore all the configuration options and customize your keyboard to your personal preference. You can freely choose your: Top Case & Bottom Case Weight (Brass, Aluminum, stainless steel, Copper) PCB (Hotswap, Solder and HE) Plate (Carbon Fiber, Polycarbonate, Aluminum,FR4) Foam Kit Wrist Rest As you make your selections, the configurator will provide a live preview of your color combination, along with the updated total weight and price. Step 3: Finalize Your Order Once you have finalized your design in the configurator, return to this product page. Select the exact same options from the dropdown menus here, then add the item to your cart and complete your order. Keyboard Parts Top Case WK WKL Bottom Case Weight Bar Copper Stainless Steel Aluminum Wood Accent Internal Cover Wrist Rest PCB Options Wired PCB (Solder & Hot-Swap) Dive into deep customization with support for AVA, VIAL, and VIA. The solder version also allows for a unique plateless build option. 1.6mm thickness FR4 material Solder version/ Hotswap version Magnetic connector PCB Json file：ydkb_kbdfans_tofu_tkl_3_0_via.json （Updated on 08/06/2025） Firmware: ydkb_kbdfans_tofu_tkl_3_0_vial.uf2 (Updated on 08/06/2025) Dual-Mode PCB Experience the freedom of wireless with our first-ever dual-mode board powered by ZMK. Its ultra-low power consumption delivers an incredible 6+ months of battery life from a single 1000mAh battery. 1.6mm thickness FR4 material Hotswap version Magnetic connector PCB Firmware: Tofu_TKL_BLE_v3_zmk_251221 HE (Magnetic) PCB Engineered for victory. We've partnered with NNKS to create a next-gen Hall Effect PCB focused on what matters most: ultra-low latency. New Daisy-Chain Architecture: Reduces input delay. Stable 0.01mm Resolution: Precision where it counts. Web-Based Configurator: Easy, on-the-fly adjustments. Continuous Firmware Updates: Always stay ahead of the curve. Layout Support Wired PCB and Dual-mode PCB layout HE（Magnetic） PCB layout Only works for WK Case Dimensions Real Pictures Render Pictures TOFU TKL R2 pre-order: Q2, 2026 The TOFU series draws its design inspiration from the purity and versatility of its namesake. Its philosophy is one of minimalism, featuring clean, architectural lines reminiscent of a simple block of tofu. It is a design that strips away the superfluous, returning to the fundamental essence of a typing instrument. As the latest evolution of this legacy, the Tofu TKL embraces this spirit of adaptability. Mirroring the culinary diversity of tofu, the TKL offers a choice of distinct case materials—Aluminum, Stainless Steel, and Copper. This allows each enthusiast to craft a keyboard that perfectly matches their personal preference for weight, sound, and feel, creating an experience that is uniquely their own. Case Design Craftsmanship & FinishExpertly crafted, the Tofu TKL case comes in two premium finishes. Choose the silky-smooth feel of sandblasted anodized aluminum or the fine, matte texture of our rich E-coating. Both perfectly highlight the case's clean, sculpted lines. Structural IntegrityInternally, the Tofu TKL carries forward the minimalist design heritage of the TOFU family while introducing a versatile dual-mounting system. This allows users to choose between a classic TOP Mount for a firm, responsive feel, or a PCB Gasket Mount for a softer, more flexible typing experience, catering to diverse preferences. Visual LanguageVisually, the Tofu TKL introduces a bold design language. The bottom case features an exposed rear accent, splitting the USB port face into two distinct sections. This innovative construction enables striking two-tone color combinations, both immediately captivating and enduringly timeless. Integrated Force Break SystemThe design includes custom-molded Force Break silicone pads. These pads create a buffer between case components, effectively dampening case vibration and eliminating unwanted metallic "ping," ensuring a cleaner sound. Specs Case material: Aluminum (anodized/e-coating) Mounting style: Top Mount/PCB Silicone Gasket PCB: 1.6mm, 4 options, solder/wired hotswap/Dual-mode hotswap/HE Plate: Alu/Carbon fiber/PC Plate Typing angle: 9 degree Cover plate material options: Stainless Steel / Brass Weight: up to 4.9kg after built Designer: Wei Plate file Additional Accessories Tofu TKL Accessories Tofu TKL | Custom Color Edition Top Case Tofu TKL | Custom Color Edition Bottom Case QC Standard Upon receipt, the casing is considered acceptable if all six external surfaces (top, bottom, left, right, front, and back) are free from machining marks, stains, dents, and pinholes, and do not have any black dots larger than 1mm or scratches longer than 1mm. The copper weight is considered acceptable if it does not have any black dots, pinholes, or blemishes larger than 1mm, and no scratches longer than 2mm. Flaws and manufacturing artifacts that do not affect the overall external appearance are considered reasonable. This includes, but is not limited to: minor blemishes around screw holes, uneven internal coating, hook marks (from anodizing/painting) where the base color is exposed, and water marks, tool marks, or scratches on internal surfaces. Purchasing this product means you accept these terms. Due to the significant weight difference between the top and bottom case parts, there may be slight color variations even when the same color is chosen for both. Standards for RAW FinishThe RAW version is unanodized and uncoated. It preserves the original look of the machined metal, including natural tool marks. Acceptable Quality Standards (Not covered by warranty):1. Minor scratches, tool paths, and small speck-like imperfections.2. Variations in surface reflection or slight dark spots on the raw metal. (RAW products are not sold as "flawless." By purchasing, you acknowledge and accept the inherent characteristics of this manufacturing process.) Other information Tofu TKL: Prototype Revisions More information about the wired HE PCB What's included Top and bottom case x1 Optional weight bar x2 Silicone gasket x1 set Rubber feet x1 set PCB x1 Daughterboard x1 Optional foam kit x1 set Battery compartment foam kit x1 set Optional plate x1 Carrying case x1 Vendor KR: Geonworks USA: Divinikey SGB: Ktechs DE: Keygem MonacoKeys FR: KEYCAPSULE ES: EloquentClicks SE: Maxgaming TH: Aiglatson Studio VN: The Keebs Of Leser MOKB BYS Soi Gear ID: Keebsmark UK: Prototypist Statement Regarding TOFU TKL Stonewashed Case Please note that due to the nature of the stonewashing process, where metal interacts with stone, some abrasion on sharp corners may occur. This is a normal result of the manufacturing process. We strive to maintain strict quality control; however, it is impossible to completely prevent minor wear on sharp edges. We recommend handling the case with care and avoiding hard impacts to prolong its service life. We appreciate your support and understanding. Mounting Style PCB Gasket mount Engineered for SoftnessFollowing a similar support distribution as the TOP Mount, the PCB Gasket is designed to provide a maximally soft, bouncy, and flexible typing experience. Plateless Build PotentialCombine this mount with the solderable PCB to assemble your board without a plate. This "plateless" configuration is the ultimate choice for achieving maximum flex and a unique, deep sound profile. Top mount Optimized TOP Mount StructureTo minimize resonance and hollowness, the mounting points for the TOP structure are strategically placed to avoid the spacebar area. This results in a more uniform and satisfying sound signature. Plate-Mount Silicone DampenersSilicone dampeners provide complete physical decoupling of the positioning plate from the upper housing. This design mitigates resonance conduction at its origin, significantly reducing structural noise Exploded View How to Customize Your TOFU TKL Step 1: Launch the Configurator Go to our live configurator at https://kbd.tools/. Once there, select "TOFU TKL " from the "Select Keyboard Model" dropdown menu. 8Step 2: Design Your Build Explore all the configuration options and customize your keyboard to your personal preference. You can freely choose your: Top Case & Bottom Case Weight (Brass, Aluminum, stainless steel, Copper) PCB (Hotswap, Solder and HE) Plate (Carbon Fiber, Polycarbonate, Aluminum,FR4) Foam Kit Wrist Rest As you make your selections, the configurator will provide a live preview of your color combination, along with the updated total weight and price. Step 3: Finalize Your Order Once you have finalized your design in the configurator, return to this product page. Select the exact same options from the dropdown menus here, then add the item to your cart and complete your order. Keyboard parts Top Case WK WKL Bottom Case Weight Bar Copper Stainless Steel Aluminum Wood Accent Internal Cover Wrist Rest PCB Options Wired PCB (Solder & Hot-Swap) Dive into deep customization with support for AVA, VIAL, and VIA. The solder version also allows for a unique plateless build option. 1.6mm thickness FR4 material Solder version/ Hotswap version Magnetic connector PCB Json file：ydkb_kbdfans_tofu_tkl_3_0_via.json （Updated on 08/06/2025） Firmware: ydkb_kbdfans_tofu_tkl_3_0_vial.uf2 (Updated on 08/06/2025) Dual-Mode PCB Experience the freedom of wireless with our first-ever dual-mode board powered by ZMK. Its ultra-low power consumption delivers an incredible 6+ months of battery life from a single 1000mAh battery. 1.6mm thickness FR4 material Hotswap version Magnetic connector PCB Firmware: Tofu_TKL_BLE_v3_zmk_251221 HE (Magnetic) PCB Engineered for victory. We've partnered with NNKS to create a next-gen Hall Effect PCB focused on what matters most: ultra-low latency. New Daisy-Chain Architecture: Reduces input delay. Stable 0.01mm Resolution: Precision where it counts. Web-Based Configurator: Easy, on-the-fly adjustments. Continuous Firmware Updates: Always stay ahead of the curve. Layout Support Wired PCB and Dual-mode PCB layout HE（Magnetic） PCB layout Only works for WK Case Dimensions Render Pictures Real Pictures FAQs Can I use KBD8X MKIII or VENOM HE PCBs with this board? VENOM HE PCB is compatible, but we need to use our own daughterboard What is the latency for the wired and dual-mode PCBs? Is the dual-mode latency significant? The latency is 1.25ms for MX-style switches and 0.125ms for magnetic switches. As expected, the latency in dual-mode (wireless) will be slightly higher than in single-mode (wired). Can I request a different color after making a purchase? This pre-order is for our standard color options. However, we also offer a paid upgrade service for custom colors in collaboration with KEZEWA. Will a half-plate made of steel be available in the future? Yes, that's possible. Will there be a CEM-1 solder PCB option in the future? Due to the design requirements, a CEM-1 PCB is not supported. Will the design files be made public? Yes, the design files (for the plate, case, and battery filler) will be released for download after the Group Buy (GB) is completed. Do you offer custom colors for the texture? This would require testing. Anodizing is most reliably done at the original factory. De-anodizing and re-anodizing after it leaves the factory could cause secondary damage. Therefore, we do not accept orders for custom-colored texture at this time. If you are interested, you can send it to an anodizing service yourself, but we will not be responsible for any after-sales support in that case. Can magnetic switches be used with a gasket ? Yes. Our magnetic switch solution supports an adjustable actuation point with 0.01mm increments. While technically it can go lower, 0.01mm is a stable and practical value that represents the physical limit of what most people can perceive. Smaller increments would only create inconvenience when configuring in the software. Do the magnetic switches support an 8K polling rate? Yes, it is a true 8K polling rate. However, considering the varying quality of switches on the market, we have added an option to change the polling rate in the top-right corner of the configurator website. If you are using lower-quality magnetic switches, you can switch to a lower polling rate to calibrate and improve performance. Why is there only a dual-mode (Wired + Bluetooth) version and not a tri-mode (Wired + Bluetooth + 2.4G) version? Our current firmware is based on an open-source solution that does not include a 2.4G wireless component. We believe dual-mode meets the needs of the vast majority of users. Furthermore, this keyboard features an ultra-low-power design, making it exceptionally energy-efficient. (From personal experience, I often lose the 2.4G dongles anyway.) Click here for more about Tofu TKL | Custom Color Edition Anodized Sage Green Stone Wash Silver Stone Wash Red Stone Wash Black Anodized Dark Olive Anodized Burgundy Anodized Deep Purple Anodized Red Anodized Coffee Anodized Midnight Purple Anodized Navy Blue Anodized Orange Anodized Violet Anodized Bronze Anodized Champagne Anodized Lime Green Anodized Royal Blue Anodized Marigold Anodized Lavender Anodized Magenta Anodized Pink Click here for more about Tofu TKL | Custom Color Edition Anodized Sage Green Stone Wash Silver Stone Wash Red Stone Wash Black Anodized Dark Olive Anodized Burgundy Anodized Deep Purple Anodized Red Anodized Coffee Anodized Midnight Purple Anodized Navy Blue Anodized Orange Anodized Violet Anodized Bronze Anodized Champagne Anodized Lime Green Anodized Royal Blue Anodized Marigold Anodized Lavender Anodized Magenta Anodized Pink FAQs Can I use KBD8X MKIII or VENOM HE PCBs with this board? VENOM HE PCB is compatible, but we need to use our own daughterboard What is the latency for the wired and dual-mode PCBs? Is the dual-mode latency significant? The latency is 1.25ms for MX-style switches and 0.125ms for magnetic switches. As expected, the latency in dual-mode (wireless) will be slightly higher than in single-mode (wired). Can I request a different color after making a purchase? This pre-order is for our standard color options. However, we also offer a paid upgrade service for custom colors in collaboration with KEZEWA. Will a half-plate made of steel be available in the future? Yes, that's possible. Will there be a CEM-1 solder PCB option in the future? Due to the design requirements, a CEM-1 PCB is not supported. Will the design files be made public? Yes, the design files (for the plate, case, and battery filler) will be released for download after the Group Buy (GB) is completed. Do you offer custom colors for the texture? This would require testing. Anodizing is most reliably done at the original factory. De-anodizing and re-anodizing after it leaves the factory could cause secondary damage. Therefore, we do not accept orders for custom-colored texture at this time. If you are interested, you can send it to an anodizing service yourself, but we will not be responsible for any after-sales support in that case. Can magnetic switches be used with a gasket ? Yes. Our magnetic switch solution supports an adjustable actuation point with 0.01mm increments. While technically it can go lower, 0.01mm is a stable and practical value that represents the physical limit of what most people can perceive. Smaller increments would only create inconvenience when configuring in the software. Do the magnetic switches support an 8K polling rate? Yes, it is a true 8K polling rate. However, considering the varying quality of switches on the market, we have added an option to change the polling rate in the top-right corner of the configurator website. If you are using lower-quality magnetic switches, you can switch to a lower polling rate to calibrate and improve performance. Why is there only a dual-mode (Wired + Bluetooth) version and not a tri-mode (Wired + Bluetooth + 2.4G) version? Our current firmware is based on an open-source solution that does not include a 2.4G wireless component. We believe dual-mode meets the needs of the vast majority of users. Furthermore, this keyboard features an ultra-low-power design, making it exceptionally energy-efficient. (From personal experience, I often lose the 2.4G dongles anyway.)
