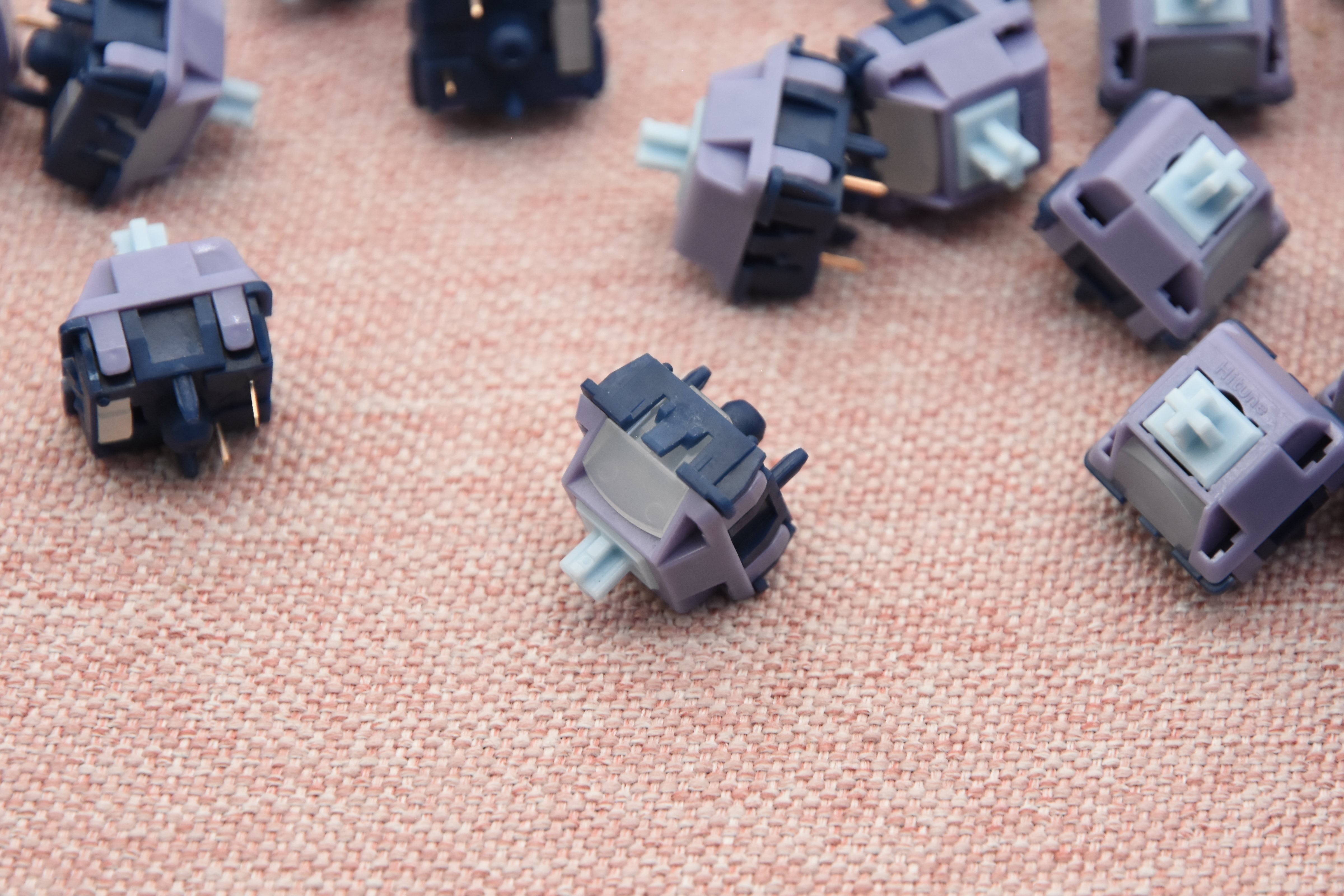

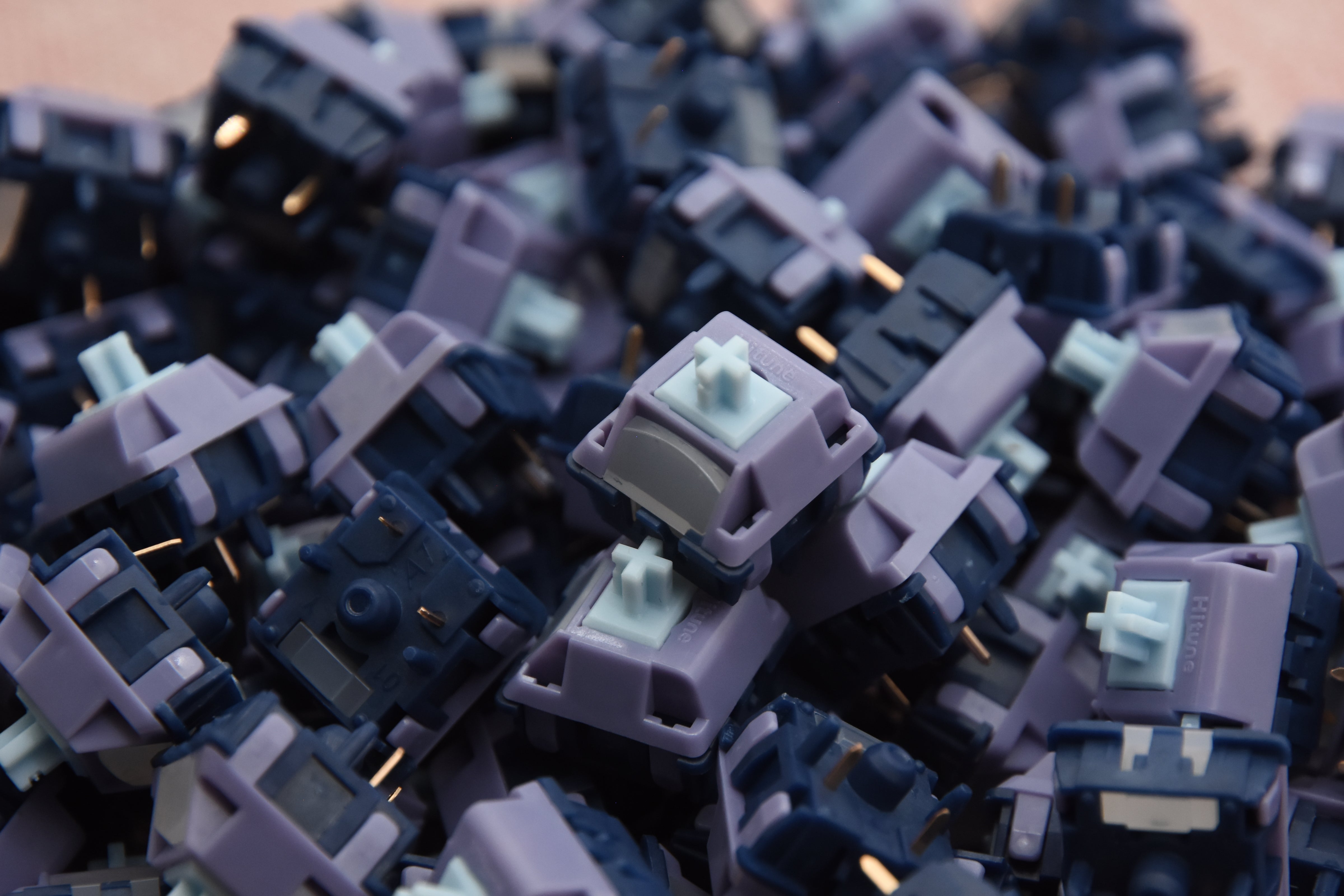

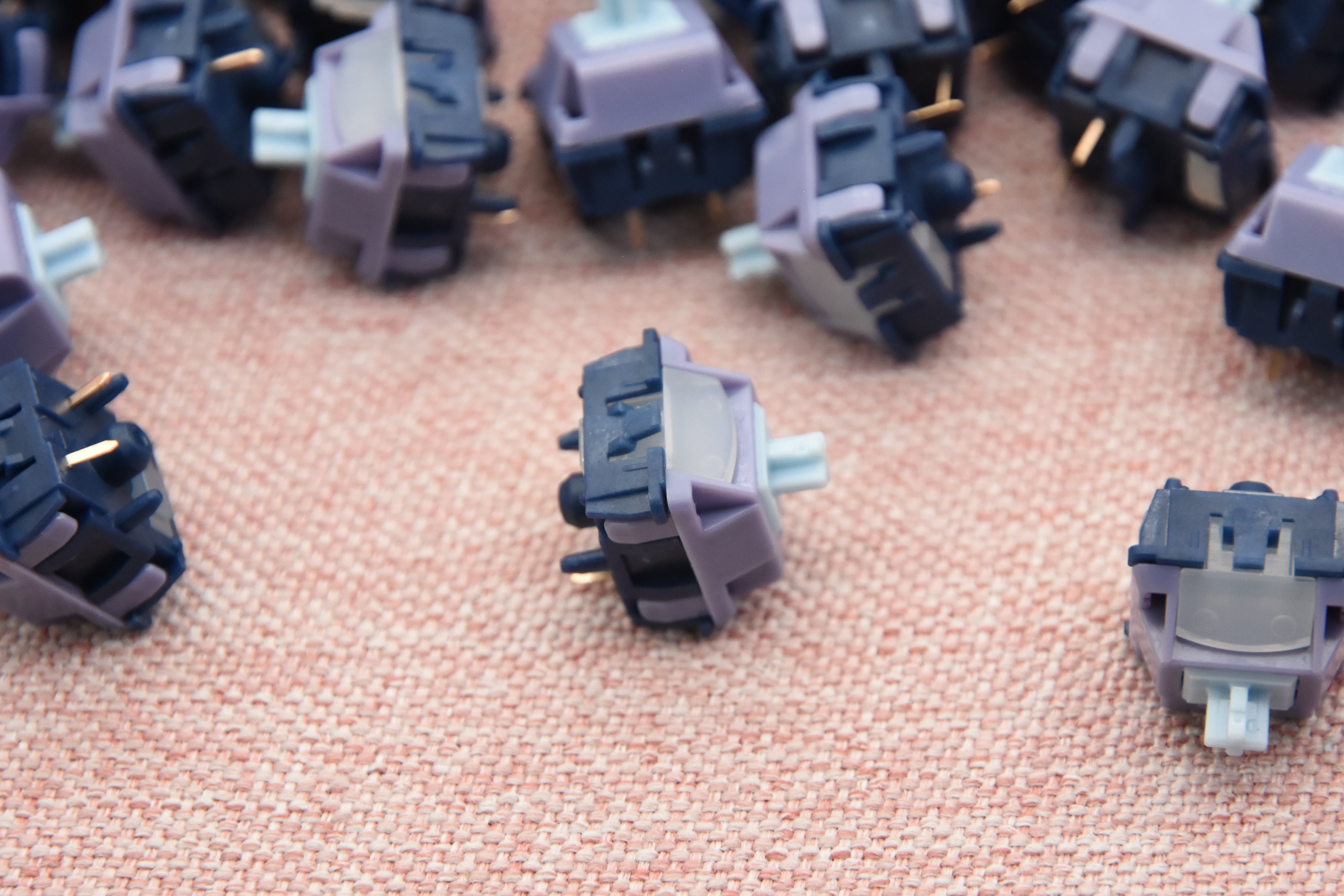

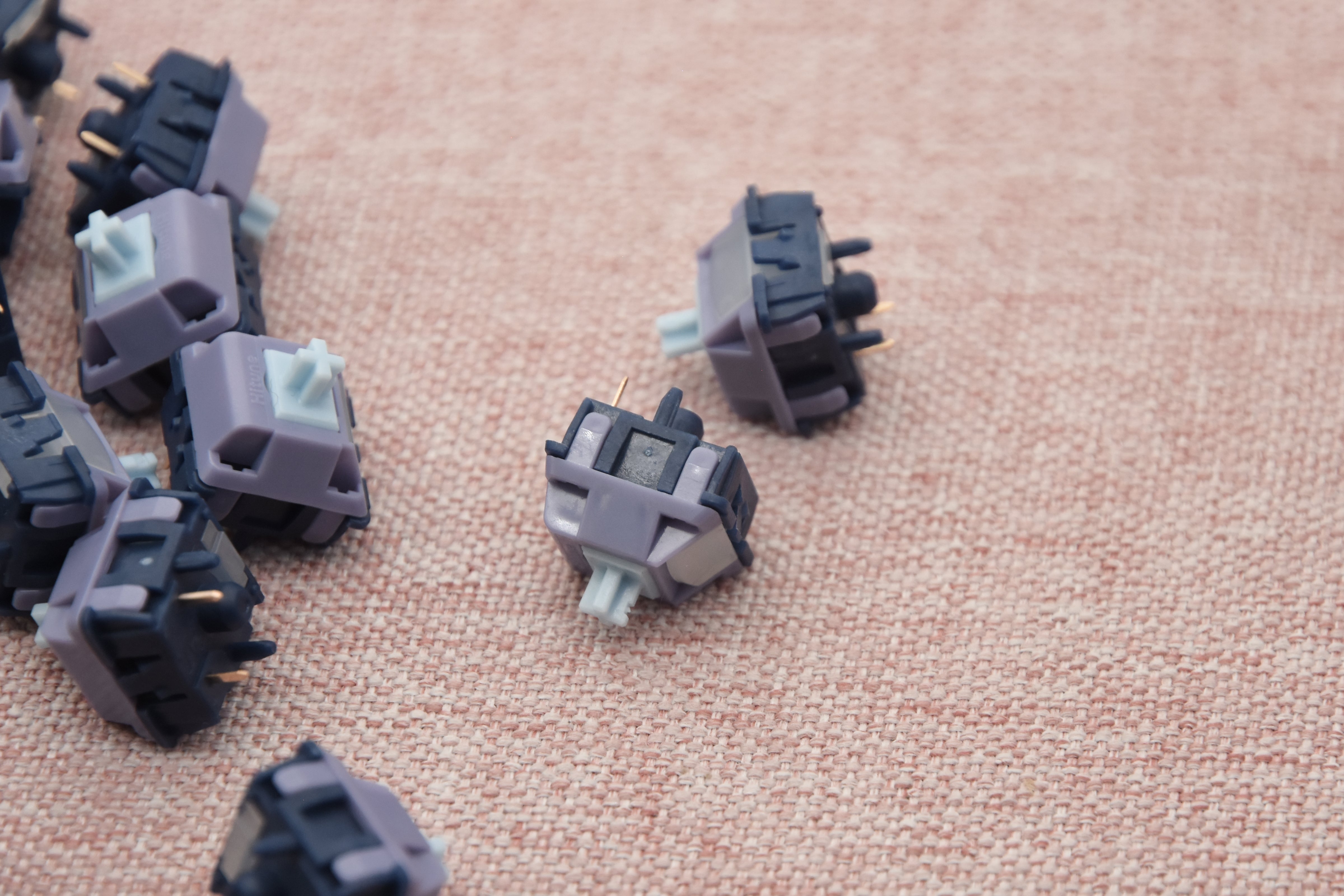

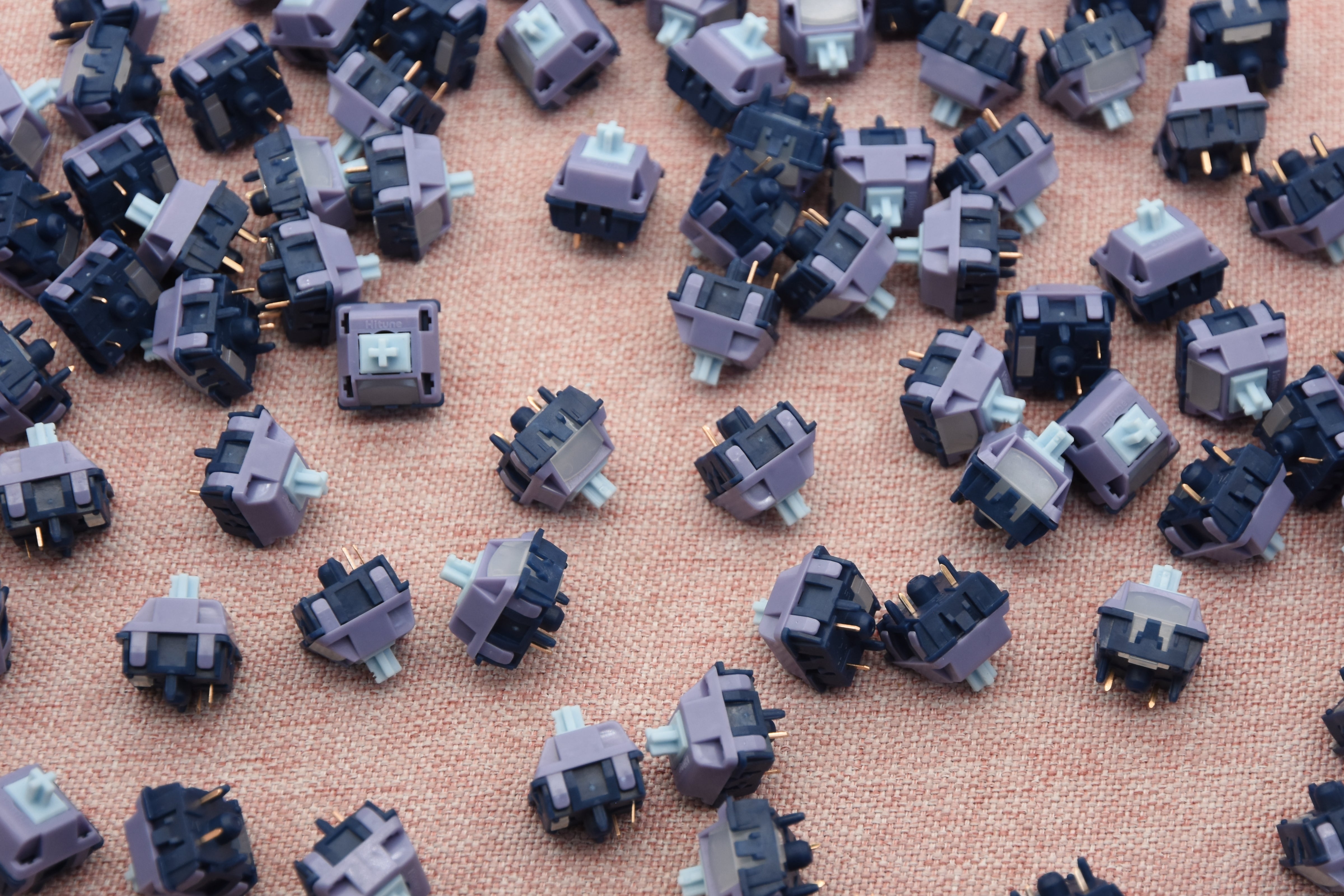

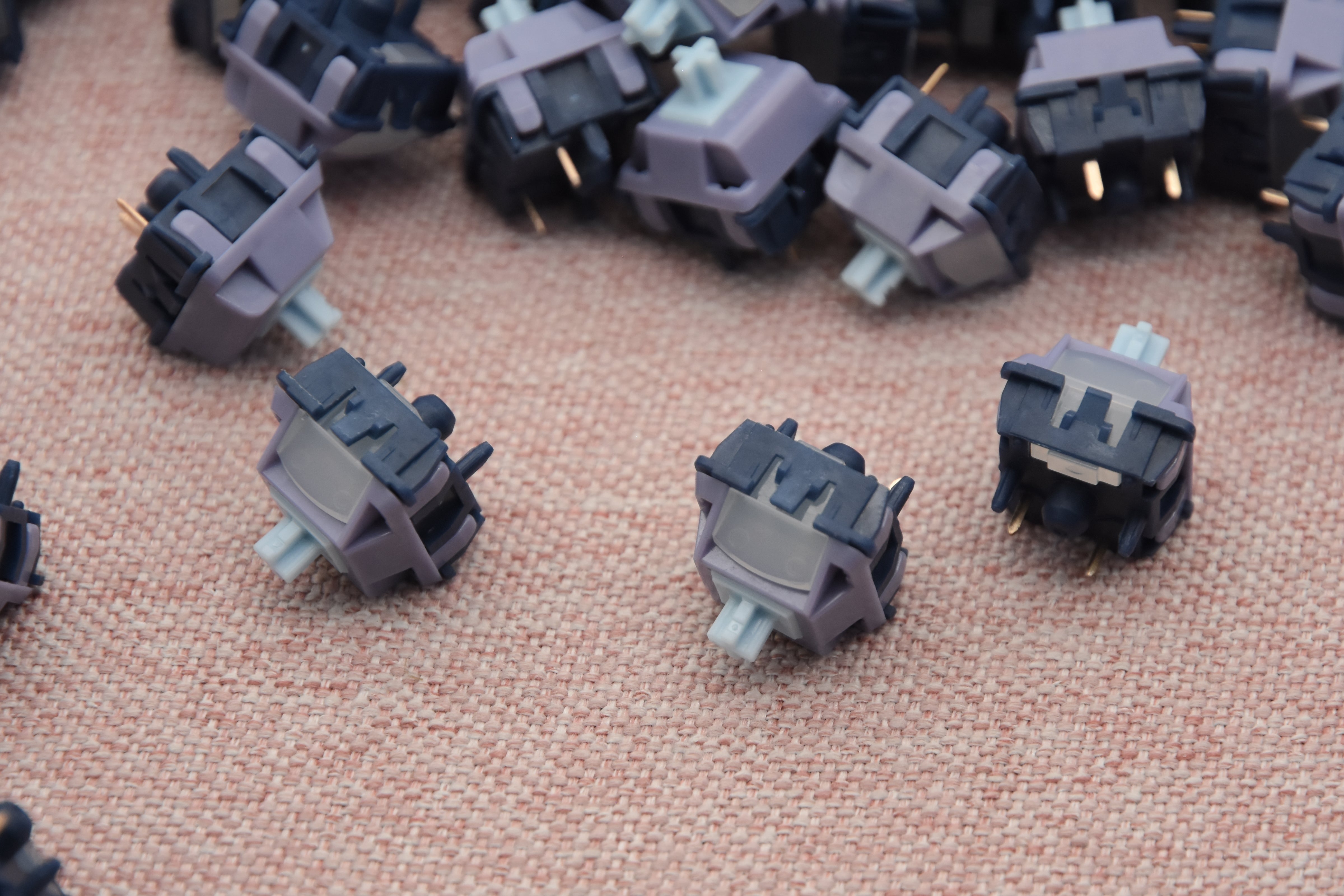

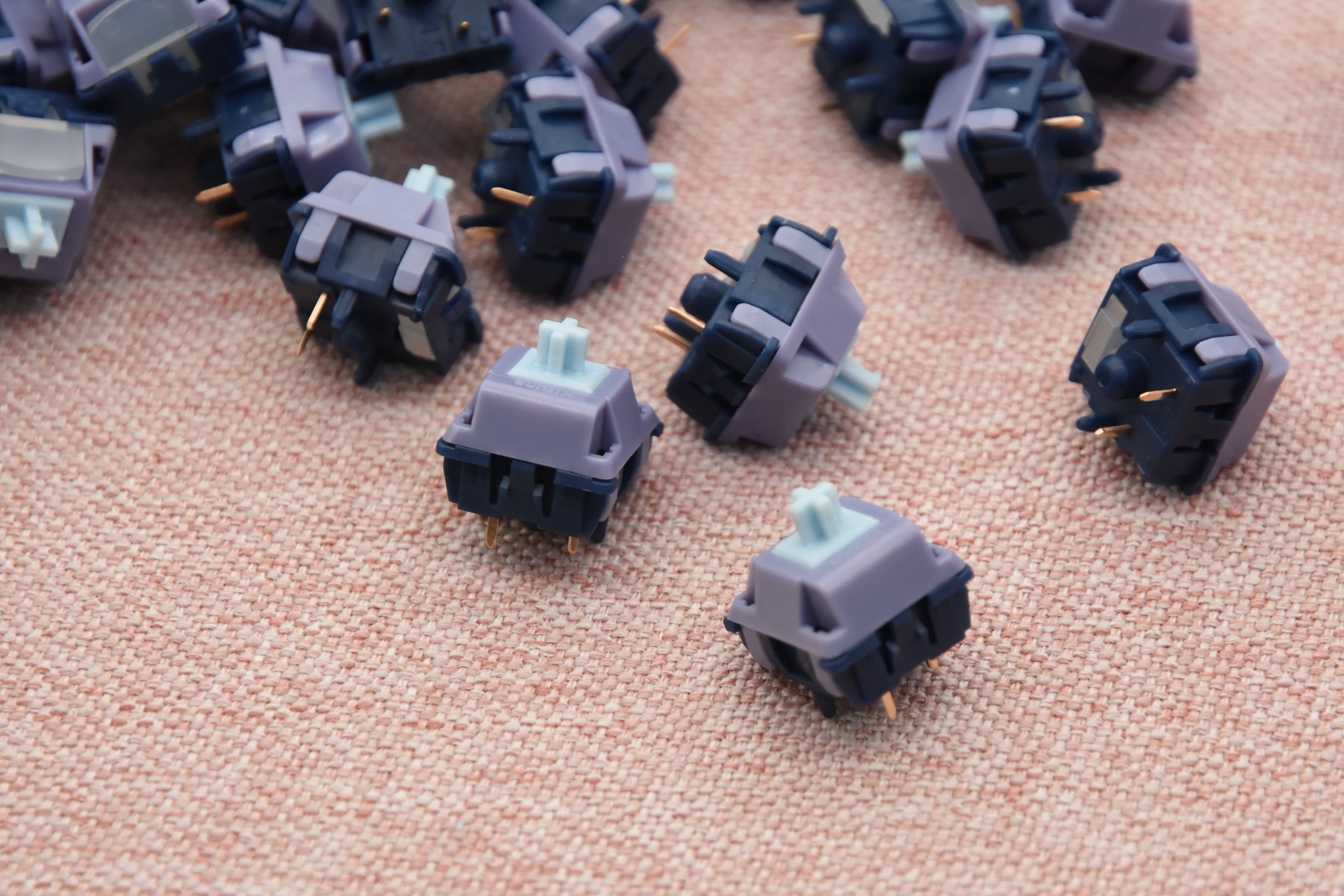

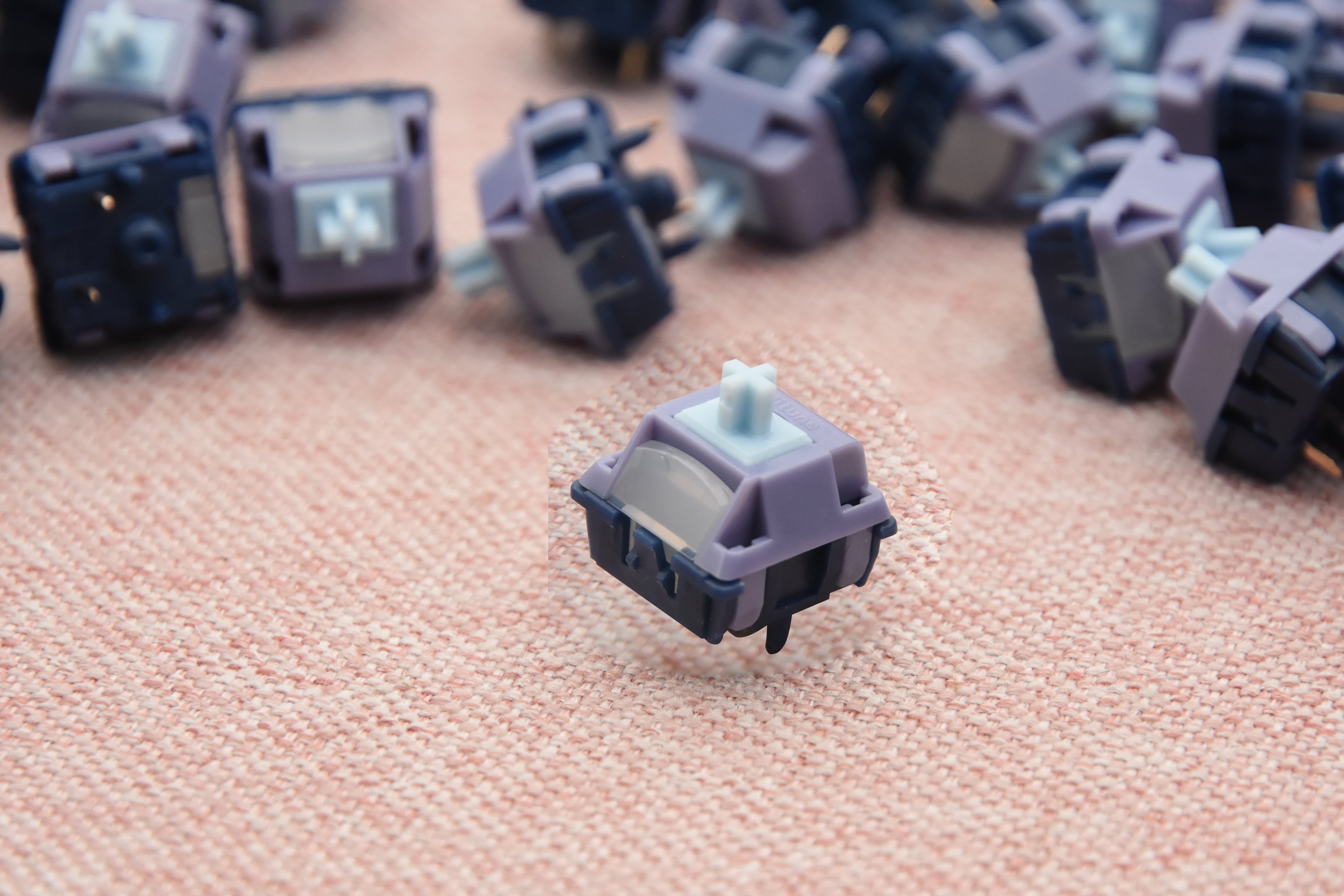

Wingtree Km16
WingTree
通常プロファイルリニア5
スイッチ概要

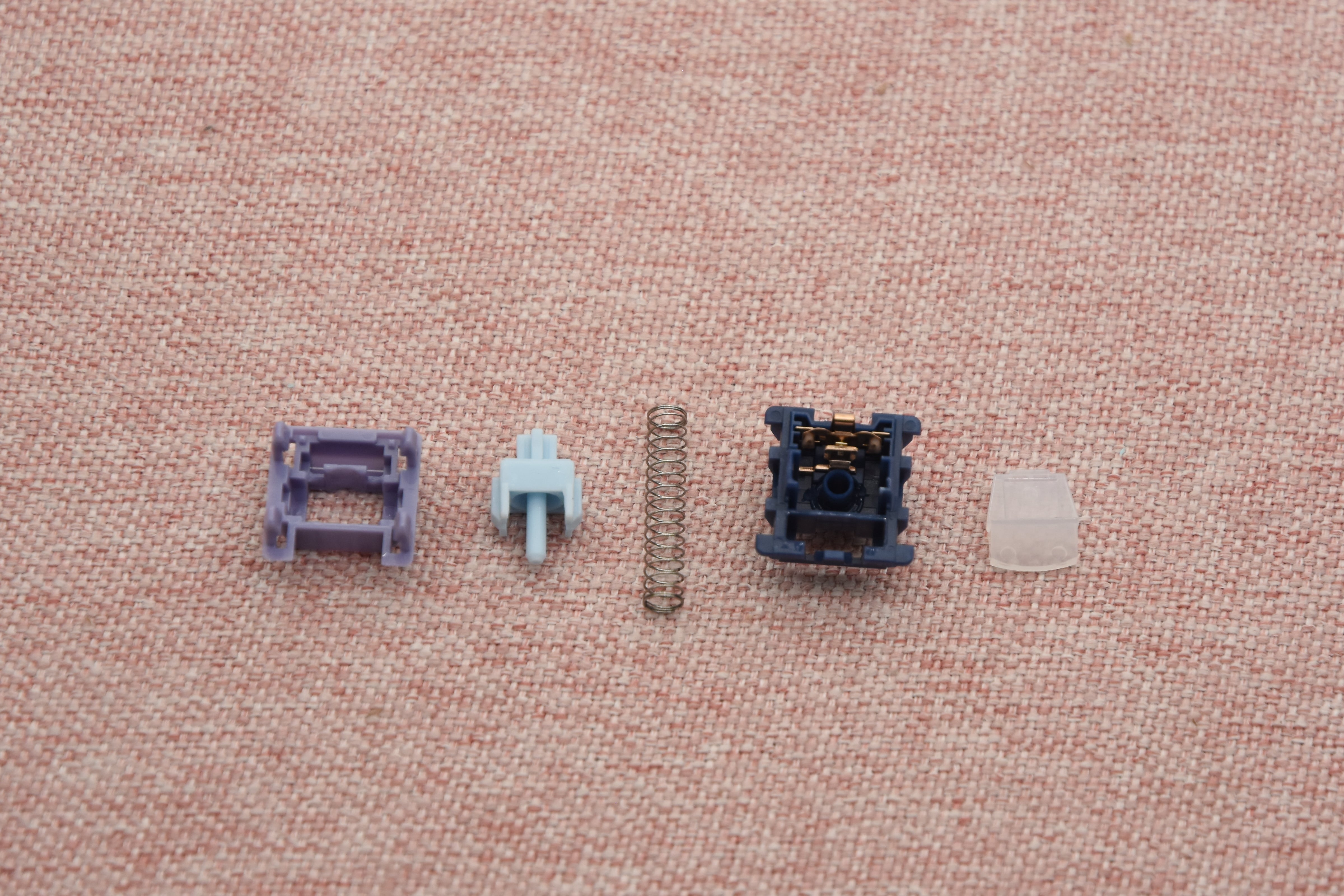

The KM16 linear switch is the first ever Wingtree switch that uses LY blend for its stem; It creates a slightly louder but concentrated and solid bottom out when compared to UPE stems. Also, thanks to the PC top housing and the great factory lube job, KM16 is super smooth right out of the box. They are just ready to be popped into a keyboard. Factory Lubed: Yes! Stem legs and stem sliders are covered with a very thin coat of 205g0. The spring and leaf are lubed.
最終更新日: 2026年9月10日
物理特性
物理特性
作動荷重40±2g
底打ち力45±2g
プリトラベル2.0mm
総ストローク3.3±0.2mm
ステム材質LY
工場潤滑済みはい
LEDサポートSMD LED
スプリング21mm single-stage
デザイナーWingtree
プロファイル情報
プロファイル通常プロファイル
タイプリニア
サイレントいいえ
ピン数5
Force Travel diagram
