Ttc
Ttc Neptune
Standard ProfileLinear5
Image Gallery
1 / 6
Switch Overview

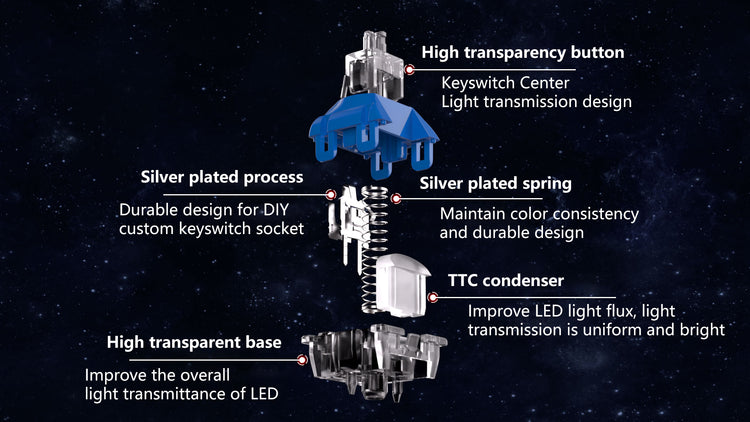

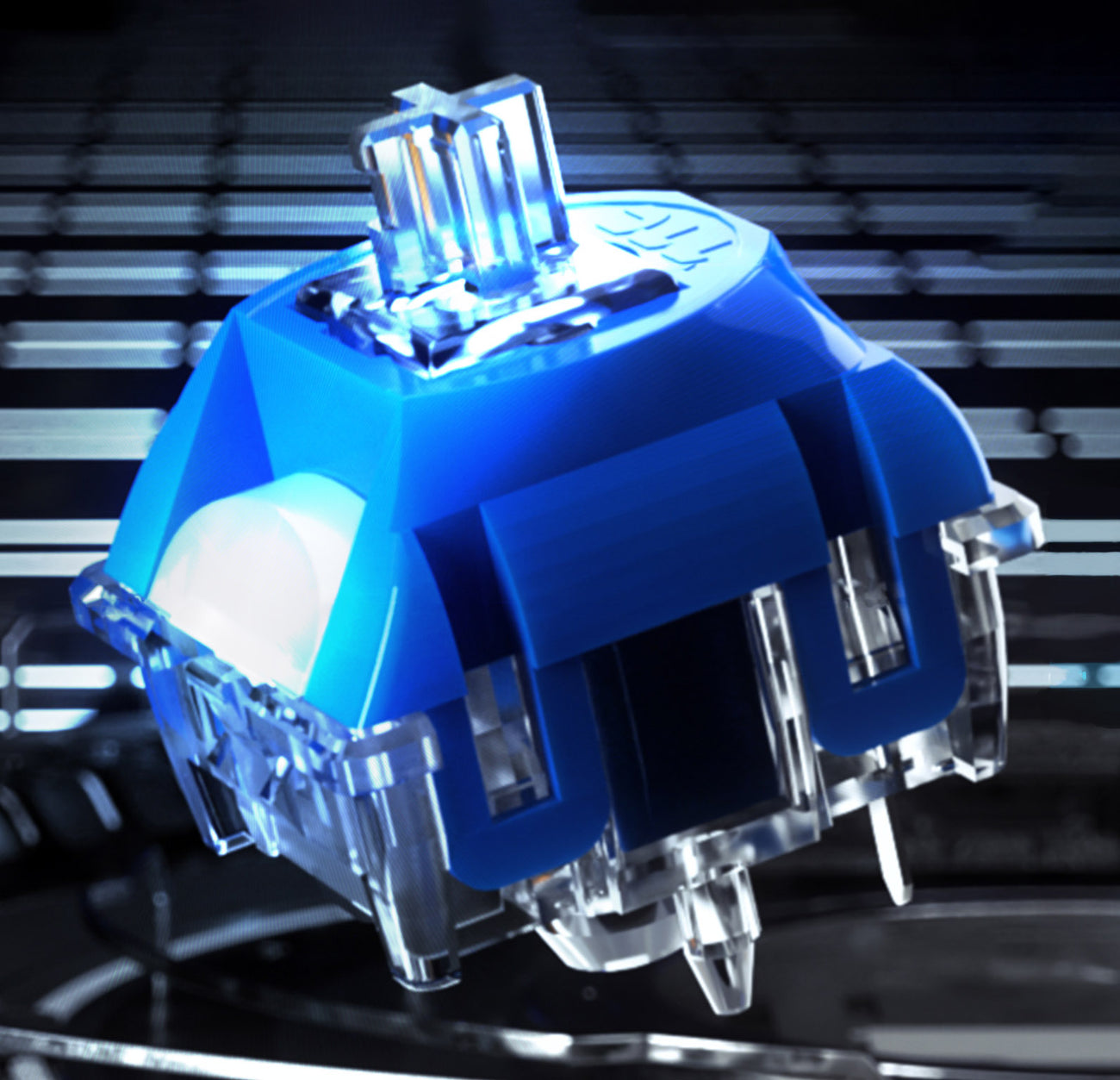

TTC Neptune is a 41g linear PCB-mount switch with a 50g bottom-out, 2.00mm pre-travel and 3.80mm total travel. It uses a POM stem, POM top housing and polycarbonate bottom housing with a lengthened 21.5mm spring, a long track in the top housing and a light condenser for improved shine-through, and ships factory lubed.
Last Updated: September 10, 2026
Specifications
Physical Specifications
- Actuation Force
- 41g
- Bottom Out Force
- 50g
- Pre-travel
- 2.00mm
- Total Travel
- 3.80mm
Build & Materials
- Stem Material
- POM
- Factory Lubed
- Yes
- LED Support
- LED
- Spring
- Lengthened 21.5mm spring
Profile Information
- Profile
- Standard Profile
- Type
- Linear
- Silent
- No
- Pin Count
- 5

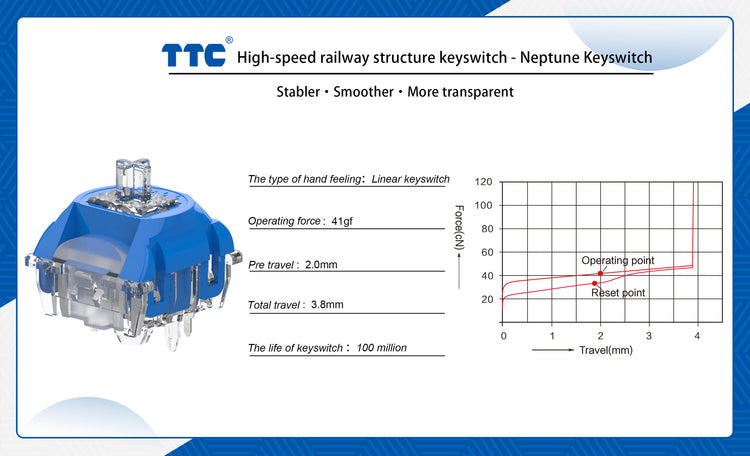

Force Travel Diagram
Vendor Information
Vendor Information
mechanical-keyboards
0.42 USD
Note: Price information may not be accurate. Please verify the current price on the vendor's website.
OUT_OF_STOCK
Last Updated: 8/22/2026
