Kailh

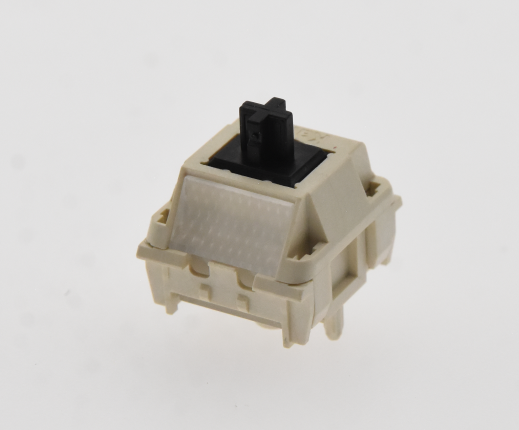

Kailh Xuan





The Kailh Xuan is a light tactile switch, the tactile counterpart to the Calligraphy linear switch, combining a comfortable tactile bump with a lively, responsive sound profile. It uses an MF stem and LCP housing combination for a balanced typing experience with a pleasant clacky character and subtle scratchiness. Like Calligraphy, it features a slight natural scratch that adds character without hurting smoothness, making it well suited to custom mechanical keyboard builds seeking light tactility and clean acoustics.
Last Updated: September 15, 2026
Specifications
Physical Specifications
- Actuation Force
- 45±2g
- Bottom Out Force
- 58±2g
- Pre-travel
- 2.0mm
- Total Travel
- 3.6±0.2mm
Build & Materials
- Stem Material
- MF Melamine formaldehyde
- Factory Lubed
- Yes
- Spring
- 21.5mm/18mm KOS single-stage extended
- Designer
- Yigiix
Profile Information
- Profile
- Standard Profile
- Type
- Linear
- Silent
- No
- Pin Count
- 5
