Ttc
Ttc Venus
Standard ProfileLinear5
Image Gallery
1 / 4
Switch Overview

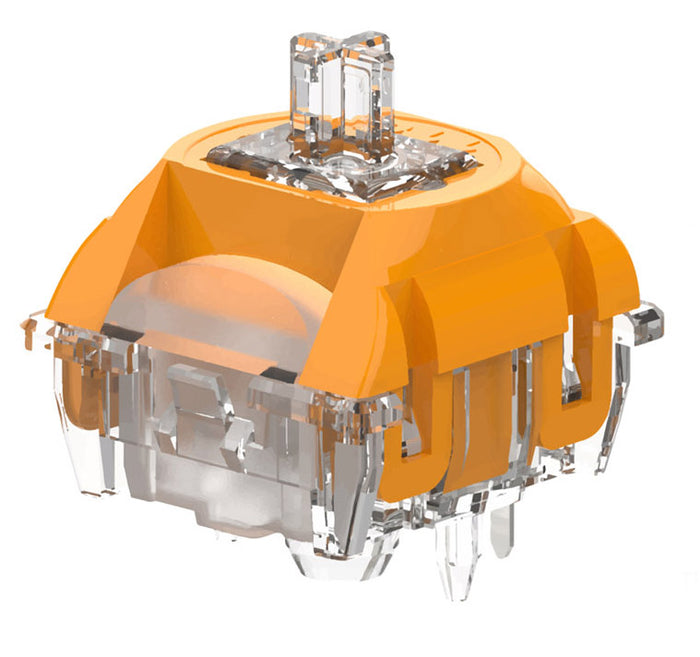

TTC Venus is a 45g linear PCB-mount switch with a 52g bottom-out, 1.80mm pre-travel and 3.80mm total travel. It features a long track in the top housing, a lengthened 6.00mm core slider and a light condenser for better shine-through, a POM top housing, polycarbonate bottom housing, POM stem and a lengthened 20.5mm spring, and ships factory lubed.
Last Updated: September 10, 2026
Specifications
Physical Specifications
- Actuation Force
- 45g
- Bottom Out Force
- 52g
- Pre-travel
- 1.80mm
- Total Travel
- 3.80mm
Build & Materials
- Stem Material
- POM
- Factory Lubed
- Yes
- LED Support
- LED
- Spring
- Lengthened 20.5mm spring
Profile Information
- Profile
- Standard Profile
- Type
- Linear
- Silent
- No
- Pin Count
- 5
Force Travel Diagram
Vendor Information
Vendor Information
mechanical-keyboards
0.45 USD
Note: Price information may not be accurate. Please verify the current price on the vendor's website.
IN_STOCK
Last Updated: 8/22/2026
