Akko
Akko Crystal Pro
Standard ProfileLinear3
Image Gallery
1 / 6
Switch Overview

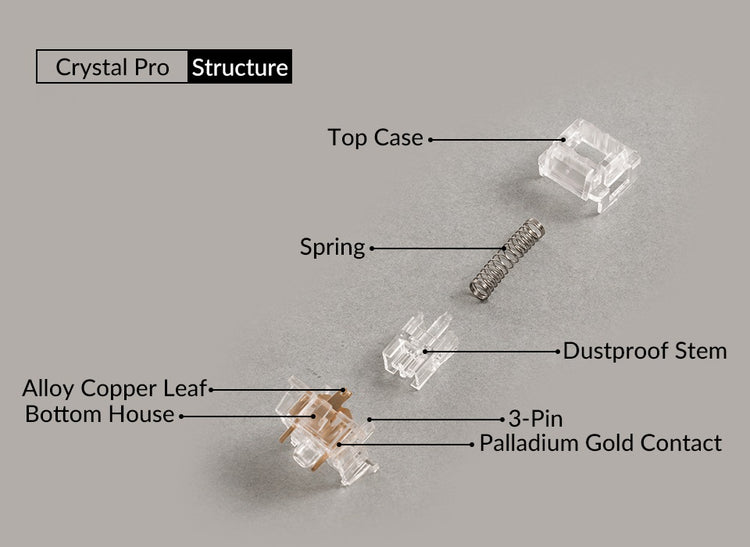

The Akko Crystal Pro is a 45g linear plate-mount switch with 60g bottom-out force, 2.00mm pre-travel, and 3.80mm total travel. It uses a dustproof partial-box style polycarbonate stem with polycarbonate top and bottom housing, an 18mm steel spring, and palladium gold contacts. It comes factory lubed and supports SMD LEDs.
Last Updated: September 16, 2026
Specifications
Physical Specifications
- Actuation Force
- 45g
- Bottom Out Force
- 60g
- Pre-travel
- 2.00mm
- Total Travel
- 3.80mm
Build & Materials
- Stem Material
- PC
- Factory Lubed
- Yes
- LED Support
- LED
- Spring
- 18mm steel
Profile Information
- Profile
- Standard Profile
- Type
- Linear
- Silent
- No
- Pin Count
- 3
Force Travel Diagram
Vendor Information
Vendor Information
mechanical-keyboards
14.99 USD
Note: Price information may not be accurate. Please verify the current price on the vendor's website.
OUT_OF_STOCK
Last Updated: 8/22/2026
akko
29.98 USD
Note: Price information may not be accurate. Please verify the current price on the vendor's website.
Quantity:90 pcs
Out of StockLast Updated: 8/27/2026
