Gateron Icey Spring

Gateron Stem

通常プロファイルリニア5

スイッチ概要

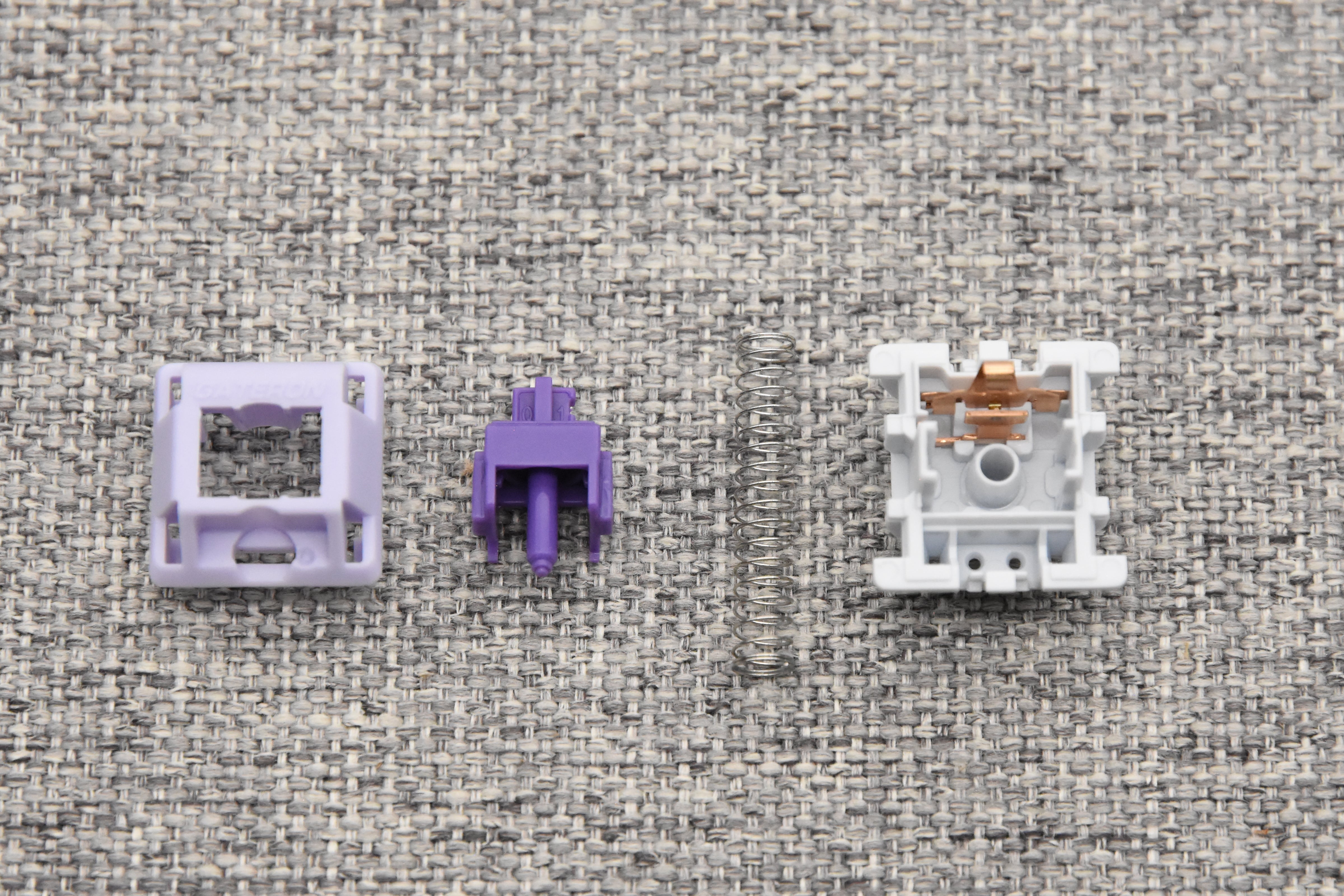

Gateron Icey Spring switch is built from the Gateron Pure Berry stem + HG Black housing franken switch concept. It is a mid-frequency linear switch designed to work well in both no-foam and fully-foamed keyboard builds. Its PA66 top housing was made by Gateron from the original stitched-switch design. It delivers a smooth travel and a distinctive return sound that closely approaches—and in testing can surpass—the original build. The bottom housing shares the original switch’s mold, preserving its muted, thick, and concentrated bottom-out character. An exclusive custom-mold, double-stage extended POM stem further concentrates and cleans up the bottom-out sound. Despite the extended design, it preserves the comfortable 3.7mm total travel.

最終更新日: 2026年8月22日

物理特性

物理特性
作動荷重45g
底打ち力53g
プリトラベル2.0mm
総ストローク3.7
ステム材質Custom-mold POM, double-stage extended stem tip
スプリング22mm single-stage extended spring
デザイナーRX-JH
モールドPOM, double-stage extended stem tip
プロファイル情報
プロファイル通常プロファイル
タイプリニア
サイレントいいえ
ピン数5

販売サイト情報

販売サイト情報

unikeys

3.8 USD
注意: 価格情報は正確でない可能性があります。実際の価格は販売サイトでご確認ください。
in_stock
最終更新: 8/22/2026
Force Travel diagram
